We produce for your health.

Saharan Type Industrial Aseptizer
Saharan Type Mobile Air Conditioning and Air Sterilization Device



Saharan Aseptizer

Saharan Type Industrial Aseptizer EN - Pdf 2082 Kb.


ISO 9001 ISO 13485 CE

Saharan Type Industrial Aseptizer DataSheet EN - Pdf 130 Kb.



Saharan Type Industrial Aseptizer EN - Pdf 11146 Kb.

Saharan Type Mobile Air Conditioning and Air Sterilization Device
Saharan Aseptizer - XRETON-P CW 5000 / 10000

Field Type Intensive Care - Operating Room Device
Saharan Aseptizer XRETON-P CW 10000
Saharan Aseptizer Provides A Maximum Level Of Air Sterilization In The Military And Civilian Saharan Field Uses.

Saharan Aseptizer Provides Positive-Negative Air Pressure and Air- Conditioning of the Environment.

Saharan Aseptizer is used in Field Type hospitals, Field Type uses and Tent hospitals.

Saharan Aseptizer is a microbiological protection and contamination reduction, high-level particle cleaning and air conditioning device in airborne bacteria-virus sterilization.


Saharan Aseptizer Fields of Usage
Field Type Clean Room Device

Tent Air Purifier - Air Conditioning Device

Tent Type Air Sterilizer
  • Field Hospitals
  • Tent Type Field Hospitals
  • Mobile - Trailer Type Field Hospitals
  • Container Type Field Hospitals
  • Hospitals for Disaster Area
  • Shed Type Hospitals etc.
  • Saharan Aseptizer is specially produced for field type and mobile hospitals.
  • Saharan Aseptizer can also be used as a stand-alone air conditioning device.
Saharan Aseptizer General Specifications
  • Controls the heat, humidity, pressure and particle in the environment where it is used.
  • Has 5 different modes; 3 positive, 1 negative and 1 automatic.
  • It is capable of providing POSITIVE and NEGATIVE pressure and has a decontamination system.
  • Adjusts the air speed flow according to the filter efficiency with the speed compensation system.
  • The main filter is HEPA H14 (99.999% retention for particles larger than 0.3 - 0.5 micron).
  • Cleans the air taken and expelled from the external environment by using pre and waste filter application (Eu4, Eu7, G4 Carbon)
  • Ensures filter safety with its leak-proof HEPA Plenum Box in accordance with DOP. The system has UVC 254 nm germicidal lamps.
  • With UVION Module technology, it is provided to disinfect the filtered air with negative ion and atmospheric plasma effect.
  • Values can be set via touch, color, graphic display and area variables can be observed.
  • Has full automatic automation control and the sensor group is sensitive to sensitive changes.
  • At maximum power, the measured volume is 55 Db
  • Installation time is short, easy to use, and most importantly, it can feed 4 separate units at the same time.
  • With its mobile design, the device works in all out weather conditions without the need for a special external area. The chassis of the Saharan Aseptizer device is especially made of steel and does not oxidize due to negative ions.
  • With the use of Saharan aseptizers, the risk of possible contamination and epidemics is minimized.
  • Our Aseptizer Device has been tested and APPROVED with the number 80962070 by the TR Ministry of Health, Public Health Institution of Turkey Microbiology Reference Laboratories Presidency.
Saharan Aseptizer Technical Specifications
Saharan Aseptizer XRETON-P Air Conditioning and Sterilization Device

Saharan Aseptizer Field Type Tent Air Conditioner
  • XRETON-P CW 5000 model Saharan Aseptizer provides Class 10000 / Class 100000 particle cleaning and air sterilization in an area of 140-150 m2 at an average height of 3-4 m, with an air capacity of 5000 m3/h, an average of 15 cycles of air exchange per hour, in field hospitals
  • XRETON-P CW 5000 model Saharan Aseptizer device has 62000 BTU heating - cooling 56000 BTU inverter air conditioning capacities. Has high energy efficiency and consumes less energy.
  • XRETON-P CW 10000 model Saharan Aseptizer provides Class 10000 / Class 100000 particle cleaning and air sterilization in an area of 280-300 m2 at an average height of 3-4 m, with an air capacity of 10.000 m3/h, an average of 15 cycles of air exchange per hour, in field hospitals.
  • XRETON-P CW 10000 model Saharan Aseptizer device has 124000 BTU heating - cooling 112000 BTU inverter air conditioning capacities. Has high energy efficiency and consumes less energy.
  • Provides air-conditioning of the environment at 16-30 C. Performs heating - cooling and humidification processes. Air flows can be set on the device according to the desired number of air cycles in the environment. Temperature set values can be adjusted with 1% sensitivity.

* The system is the first and only with its ability to make the ambient pressure negative. No extra module is needed.

* When the device is in the automatic mode, works according to the value entered by the user on the screen and the filter efficiency.

* The system provides 95% decontamination and 96% bio-decontamination in the ambient for particles larger than 0.3 micrometres in the measurements made after 1 hour of operation.

UVION MODUL Technology Used in Saharan

Comprises a complete sterilization and negative ion generator, which can operate as a stand-alone system. System creates atmospheric plasma (pathogen ionizer). The negative ion generator consists of Titanium dioxide (TiO2), Silver iodide (AgI), Copper Sulphate (CuS) coated borosilicate, cylindrical cam tube and HV unit. This mechanism, thanks to its catalytic inverter ethylene-based gas and the particles in the system -OH (hydroxyl attachments) breaks down to anaesthesia and other gases to decomposition, microorganisms DNA structure in violation of the deactivation, negative (-) Ions means of the suspended particles and to the right in the photocatalytic reaction by forming the airborne pathogens and gases ineffective. Destroys all kinds of microorganisms, bacteria, viruses, pathogens.

Saharan Aseptizer Wiring Diagram

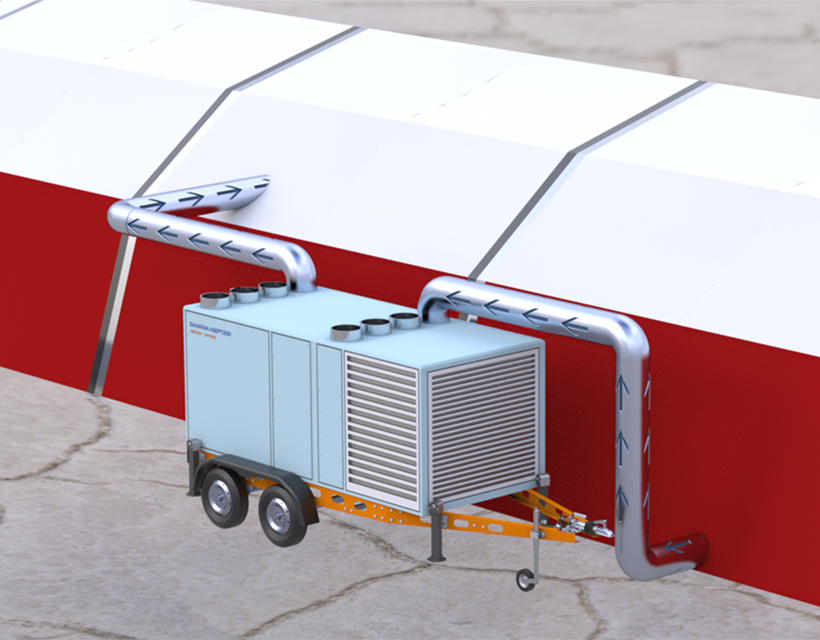

Saharan Aseptizer Connection Diagram
Clean Air Input

Fresh air is taken from the outside to the Saharan Aseptizer device, thus it is possible to obtain adjustable air in the range of 10% - 100%. If this feature is used, 20 Pa positive pressure is provided in the indoor environment where the device is used.

Optional

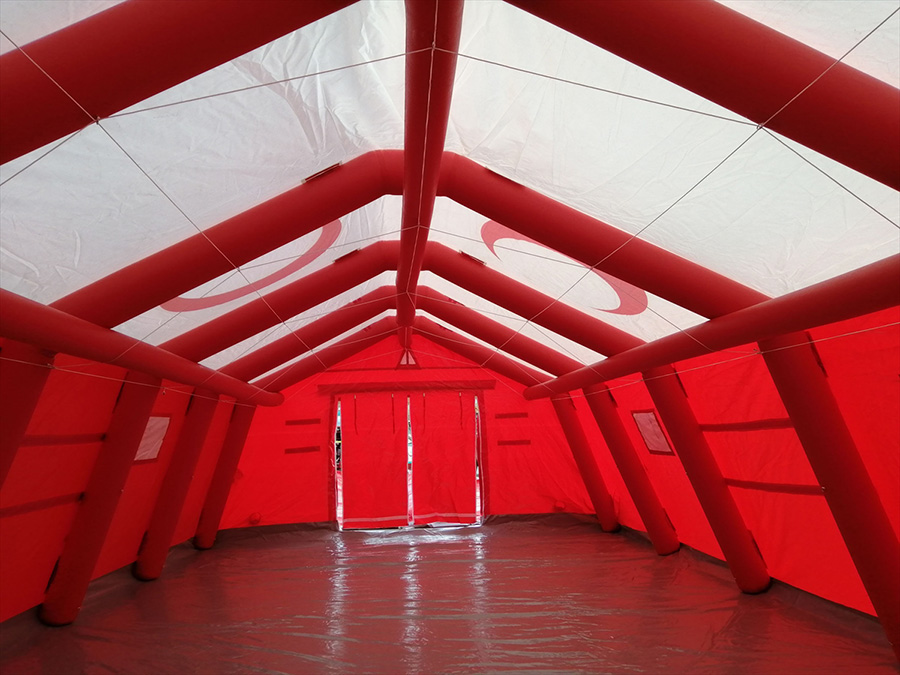

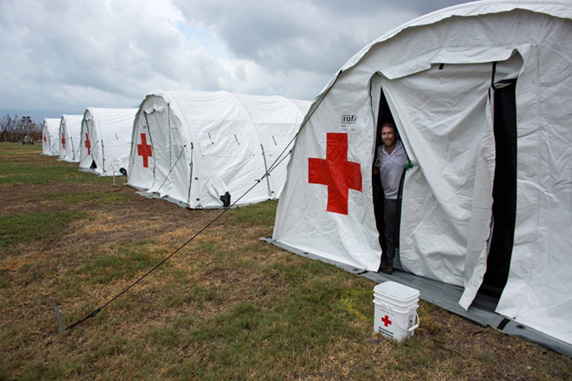

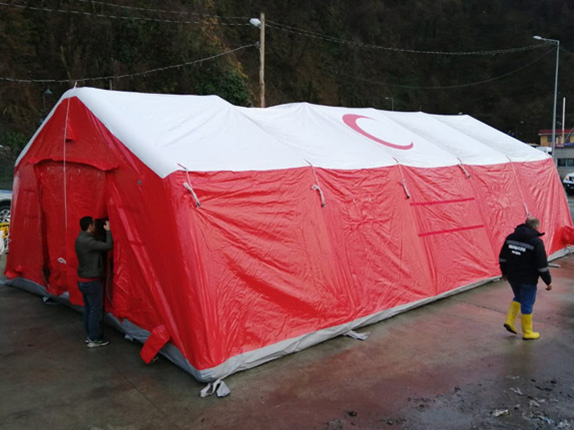

Upon request, optional field hospital tent is procured.

Saharan Aseptizer General Dimensions
Saharan Aseptizer General Dimensions
Saharan Aseptizer General Dimensions
Saharan Aseptizer General Dimensions
